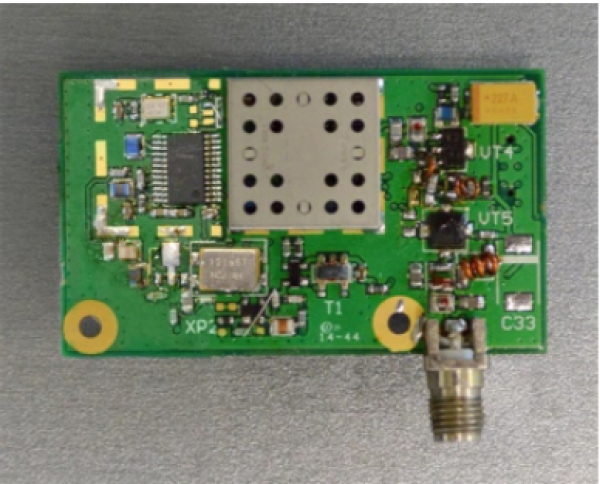

406MHz EPIRB OEM Card

Personal beacon locator PCB is designed to be integrated in any safety maritime PLB solution.

PLB transmits a unique ID and your current GPS coordinates via the COSPAS-SARSAT global search and rescue satellite network in distress situation.

PLB PCB is available as combination of 406MHz, 121.5MHz channels.

FEATURES

- PCB based on SDR technology
- Digital signal processor (DSP) is used for HF channel adjustment
- Easily firmware update
- Easy coding
- Inbuilt test facility
- Small size
- Easy adjustable
- Meets C/S, IMO, IEC standards

Designed under

  • Cospas-Sarsat T.001/T.007
  • ETSI EN302 152
  • RTCM SC11020
  • FCC CFR47 part 95K
  • IEC 61097-14 (2010)
  • IMO Resolution А.694(17), MSC.246(83), MSC.247(83), MSC.256(84)
  • EN60950-1:2006, EN62479:2010, EN301 843 v1.3.1, ETS300 487:1996, A1:1997, EN302 152 v1.1.1
  • ITU-R М. 1371-4(2010)

regulations and standards

EPIRB 406MHz channel

  • COSPAS-SARSAT frequency – can be adjusted in 406.0-406.1MHz range with 3kHz step
  • 406MHz channel power - 37dBm +/-2dBm (5W)
  • Modulation – phase modulation 1.1 radian
  • Modulation type - digital with phase discretization - 0.00044 radians
  • Data rate – 400 Baud
  • ID and MMSI coding by PC or laptop
  • Power supply -7.2V
  • Currency consumption – 40mA
  • Operation modes - emergency/test
  • Self test - battery voltage control, output power, frequency capture, GPS source
  • Operation temperature range: -20°С +55°С
  • Standards – T.001, T.007, IEC61097-2, RTCM SC11000, IC RSS287, ETS300 066

Home 121.5MHz channel

  • Operation frequency -121.5MHz
  • Power - 50mW
  • Modulation - AM sweeptone 400-1500Hz
  • Modulation type – digital
  • Frequency stability – not less 2ppm
  • Power - 7.2V
  • Currensy consuption(average) – 30mA
  • Operation temperature range – -20°С...+55°С
