AIS-SART OEM (for GMDSS products)

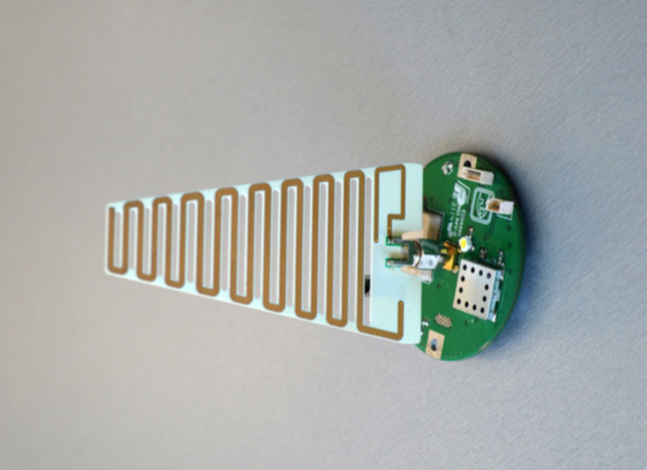

Completely new AIS-SART OEM PCB can be integrated in any commercial GMDSS product.

When activated, AIS-SART transmits an alert message along with your ID number and current GPS location which will trigger an alarm on all AIS equipped vessels within VHF range.

FEATURES:

- PCB based on SDR technology
- Digital signal processor (DSP) is used for HF channel adjustment
- Built-in GPS/GLONASS receiver
- Inbuilt test facility
- Small size
- Easy adjustable
- Meets IMO and GMDSS standards

Designed under

  • IEC 60945 (2002) incl. Comgendum 1 (2008)
  • IEC 61097-14 (2010)
  • IMO Resolution А.694(17)
  • IMO Resolution MSC.246(83)
  • IMO Resolution MSC.247(83)
  • IMO Resolution MSC.256(84)
  • ITU-R М. 1371-4(2010)

regulations and standards.

Technical specification

  • Operation frequencies:
    -channel 1 -161.975 MHz
    -channel 2 -162.025 MHz
  • Power – 33dBm (2W)
  • Modulation – GMSK
  • Modulation type – digital
  • Frequency stabilty - not less than 2ppm
  • Data rate – 9600 Baud
  • ID and MMSI coding by PC or laptop
  • Operation mode - emergency or test
  • Self test – battery voltage control, output power, frequency capture, GPS source
  • Power supply -7,2V
  • Currency consumption (with GPS) – 18mA
  • Temperature range: -20°С +55°С
  • Specification - IEC_61097-14
