EMC TESTS

Tests on Electromagnetic Compatibility

Public Enterprise Testing Center “Omega” is the leading lab in Ukraine performing electromagnetic compatibility (EMC) testing (according to Ukraine, CIS, EU and US normative document requirements). Testing Center Omega has accreditation in ISO 17025.

Highly-qualified specialists performing EMC tests
High degree of training of the technical specialists of Testing Center Omega necessary to carry out EMC tests coupled with up-to-date measuring and testing equipment permits to cope with the most complicated tasks. TC Omega specialists constantly improve their practical skills in EMC testing. We have been performing EMC tests every day since the year of 1968.

Testing equipment and facilities

Testing Center Omega is equipped with modern testing and measuring equipment of the key world manufacturers, such as Rode&Schwarz, Schwarzbeck Mess – Elektronik, Lingren, Agilent, HP, Schaffner and others. This gives an opportunity to carry out tests of products according to the wide list of normative documentation.

Testing Center Omega has:
- Shielded chambers for the conductive radio disturbances measurements in 9 kHz – 30MHz;

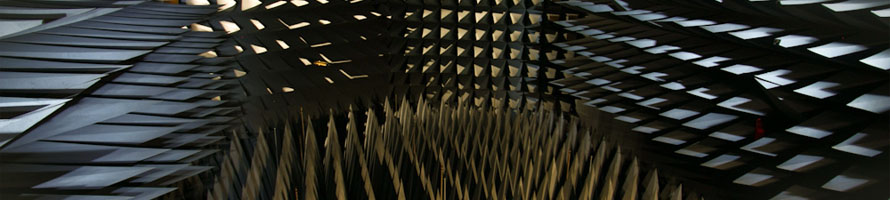

- Semi-anechoic and anechoic chambers for radiated radio disturbance measurements and tests in electromagnetic radio frequency field immunity;
- Open test sits for various types of tests in accordance with the requirements of the National, European, regional and international standards (DSTU, GOST, EN, IEC, CISPR, ANSI, RTCM, ED, etc.)

Long-term experience in performing tests

Public Enterprise Testing Center “Omega” performs electromagnetic compatibility (EMC) testing (according to Ukraine, CIS, EU normative document requirements) of such products as:
- telecommunication equipment;
- radio communication facilities;
- household radio-electronic equipment:
- household and similar electronic equipment;
- low voltage DC and AC power supplies;
- security alarm systems;
- automotive electronics and aerotronics;
- electric tools;
- lifts and other equipment.
- Tests in accordance with the international standards

Testing Center Omega performs tests in accordance with the requirements of the modern international standards, such as EN, IEC, CISPR, ANSI, RTCM, ED, etc.

The reports of EMC tests according to the international standards performed in our laboratory meet the requirements of the majority of counties and regions world-wide and permit to provide access to the effective global marketing.

Dimensions of the products tested

Size and weight of the products tested can considerably influence the organization and performance of the tests. Testing Center Omega has the experience of testing of the products with various sizes and weight (from several centimeters weighing some tens of grams to 19-inch uninterruptible power system (UPS) stand weighing more than 200 kilograms).

Principal EMC requirements

Testing Center Omega has accreditation in the principal EMC Standards applying them daily while carrying out tests.

Most frequently we apply the following standards:

Disturbance emission:
- Capacity, voltage, intensity of the disturbance field CISPR 16 / CISPR 22
- Current harmonic emission IEC / DSTU / EN 61000-3-2
- Voltage fluctuation and flicker IEC / DSTU / EN 61000-3-3

Noise immunity:
- To the electrostatic discharge
- To radio-frequency electromagnetic field IEC/ DSTU / EN 61000-4-3
- To nanosecond pulse disturbances IEC/ DSTU / EN 61000-4-4
- To high energy microsecond pulse disturbances IEC / DSTU / EN 61000-4-5
- To conductive disturbances brought by radio-frequency electromagnetic field IEC/ DSTU / EN 61000-4-6
- To magnetic disturbances of the power frequency IEC/ ДСТУ/ EN 61000-4-8
- To short-term voltage changes of power network IEC/ DSTU / EN 61000-4-11

Tests of the vehicle electrical/electronic feed to the conductive disturbances through power chains and creation of disturbances in the transitional mode GOST 28751 / ISO 7637-2 / ISO 16750-2

Testing program and reports

Testing program (test-plan)

Testing program contains all the procedures necessary to meet requirements of the standards for the equipment. Testing program includes all the data about the object tested and also the criteria and corresponding operating modes during the test. As a rule, testing program contains 10-15 testing parameters, its volume shouldn’t be more than 30 pages. Testing Center Omega offers to draw up all the necessary documents in cooperation with you.

Test report

All the EMC tests performed are described in the test report with photos and necessary data included. Test report is the key document to demonstrate the product conformity to the EMC requirements.

EMC testing for various markets

Access to the Ukrainian market

Performing EMC testing in Testing Center Omega, you meet the requirements to the technical documentation quoted in the Technical Regulations of Ukraine. Test report is an integral part of your technical documentation, being the base for Conformity Declaration and for National conformity product marking.

Technical regulation and standards of Ukraine

EMC testing program for the Ukrainian market is based on the requirements of harmonized Technical regulations and National standards of Ukraine.

We perform EMC testing according to the following Technical Regulations of Ukraine:
- EMC of equipment (resolution of the Cabinet of Ministers of Ukraine No.785 of 29/07/2009)
- Low-voltage electrical equipment safety (resolution of the Cabinet of Ministers of Ukraine No.1149 of 29/10/2009)
- Medical equipment (resolution of the Cabinet of Ministers of Ukraine No.621of 09/07/2008)
- Radio equipment and terminal telecommunications equipment (resolution of the Cabinet of Ministers of Ukraine No.679 of 24/06/2009)
- Marine equipment (resolution of the Cabinet of Ministers of Ukraine No.1103 of 05/09/2007)
- Safety of cars and mechanisms (resolution of the Cabinet of Ministers of Ukraine No.933 of 12/10/2010)
- Lifts (resolution of the Cabinet of Ministers of Ukraine No.465 of 22/04/2009)
- and other

Access to the EU market

Performing EMC testing in Testing Center Omega, you meet the requirements to the technical documentation quoted in the EU Directives. Test report is an integral part of your technical documentation, being the base for Conformity Declaration and for CE product marking.

EU Directives and Standards

EMC testing program for the EU market is based on the requirements of Directives and harmonized standards of Ukraine.

We perform EMC testing according to the following Directives of EU:
- Electromagnetic compatibility (Directive 2004/108/EC)
- Low voltage directive (Directive 2006/95/ЕС)
- Medical devices (Directive 93/42/EEC (2007/47/EC)
- Radio and telecommunications terminal equipment (Directive 99/5/EC)
- Marine equipment (Directive 96/98/EC)
- Machinery (Directive 2006/42/EC)
- and other

Simultaneous access to the several markets

Testing Center Omega offers to consider the requirements of technical documentation for various markets simultaneously while test program building-up. It would permit to optimize the volume of procedures accomplished satisfying all EMC requirements of different countries.

EMC testing for military equipment

Accomplishment of the requirements to military equipment

Testing Center Omega has accreditation for performing EMC tests for military equipment including MIL-STD 461F. There are increased requirements for testing of defence products, so that it can withstand severe loads under the real conditions. Test report is the key document to demonstrate the product conformity to all these requirements.

Specialized testing equipment

The standard requirements for defence products are wide. They involve all the environment conditions, such as electromagnetic environment, temperature, vibration, shock, moisture and other. They contain requirements for testing resistance to electrical discharge, transients from lightning, pulsed and continuous electromagnetic fields, etc.

The product test requires special testing equipment. Duration of EMC test parameters can be from several days to several weeks. The degree of hardness tests (exposure levels) depends on the class of equipment.

Knowledge and experience

Testing Center Omega has been testing defence products for 40 years already (since the moment of its foundation).

Testing Center Omega carries out EMC tests under the following MIL-STD 461F Standard parameters:
- CE 101, conductive radiation of power lines within 30 Hz – 10kHz frequency range;
- CE 102, conductive radiation of power lines within 10kHz – 10MHz frequency range;
- CE 101, conductive radiation of power lines within 30 Hz – 10kHz frequency range;
- CE 101, conductive radiation of antenna input within 10 kHz – 40GHz frequency range;
- RE 102, electrical field emission within 10 kHz – 18GHz frequency range;
- RE 103, interference emission of antennas and input signal harmonics within 10 kHz – 40GHz frequency range;
- CS 101, stability of power lines to the influence of conductive disturbances within 30Hz – 150kHz frequency range;
- CS 114, stability to the influence of conductive disturbances brought in by coil of the cable within 10kHz – 200MHz frequency range;
- RS 103, stability to electric 50dB/m field radiation within 80MHz – 6GHz frequency range.

The possibility of the tests for the other CE, CS, RE and RS tests is given after the request.
